CI/CD pipeline on Jenkins using Docker

Previously:

CI/CD pipeline on Jenkins - I

CI/CD pipeline on Jenkins - II


Now

I would like to document here what would it look like a similar setup running on Azure Container Instances (using Docker):

  • Login to Azure Portal
  • Select the appropriate Subscription to use
  • Activate the contributor role

  • Open Azure Cloud Shell
  • Let the fun begin! 🥳

Create Jenkins main node with persistent storage

Containers by default are stateless, so we need to prevent data loss at all cost.

By using persistent storage no matter how many times the container gets terminated and restarted, we will not lose any data;

The goal will be to have JENKINS_HOME (/var/jenkins_home) safely stored outside of the container.

# Change these four parameters as needed
ACI_PERS_RESOURCE_GROUP=myJenkinsResourceGroup
ACI_PERS_STORAGE_ACCOUNT_NAME=myjenkinsstorageacct1
ACI_PERS_LOCATION=eastus
ACI_PERS_SHARE_NAME=acishare

A resource group is a logical folder where we will store (group) all the items that belong to this project, this will help us to be more organized.


# Create the storage account with the parameters

az storage account create --resource-group $ACI_PERS_RESOURCE_GROUP --name $ACI_PERS_STORAGE_ACCOUNT_NAME --location $ACI_PERS_LOCATION --sku Standard_LRS


# Create the file share

az storage share create --name $ACI_PERS_SHARE_NAME --account-name $ACI_PERS_STORAGE_ACCOUNT_NAME


# Retrieve the storage key

STORAGE_KEY=$(az storage account keys list --resource-group $ACI_PERS_RESOURCE_GROUP --account-name $ACI_PERS_STORAGE_ACCOUNT_NAME --query "[0].value" --output tsv)


# Creation of our Jenkins main node

az container create --resource-group $ACI_PERS_RESOURCE_GROUP --name my-jenkins-main-01 --image jenkins/jenkins:latest --dns-name-label jenkins-main-ci --ports 8080 --azure-file-volume-account-name $ACI_PERS_STORAGE_ACCOUNT_NAME --azure-file-volume-account-key $STORAGE_KEY --azure-file-volume-share-name $ACI_PERS_SHARE_NAME --azure-file-volume-mount-path /var/jenkins_home --environment-variables 'JAVA_OPTS'='-Dorg.apache.commons.jelly.tags.fmt.timeZone=America/New_York'


 After this, we should have a Jenkins main / master node up and running on ACI.



Create Jenkins Inbound Agent

As a good practice, we will not be executing any building jobs out of the main node but we will align to our Jenkins architecture.

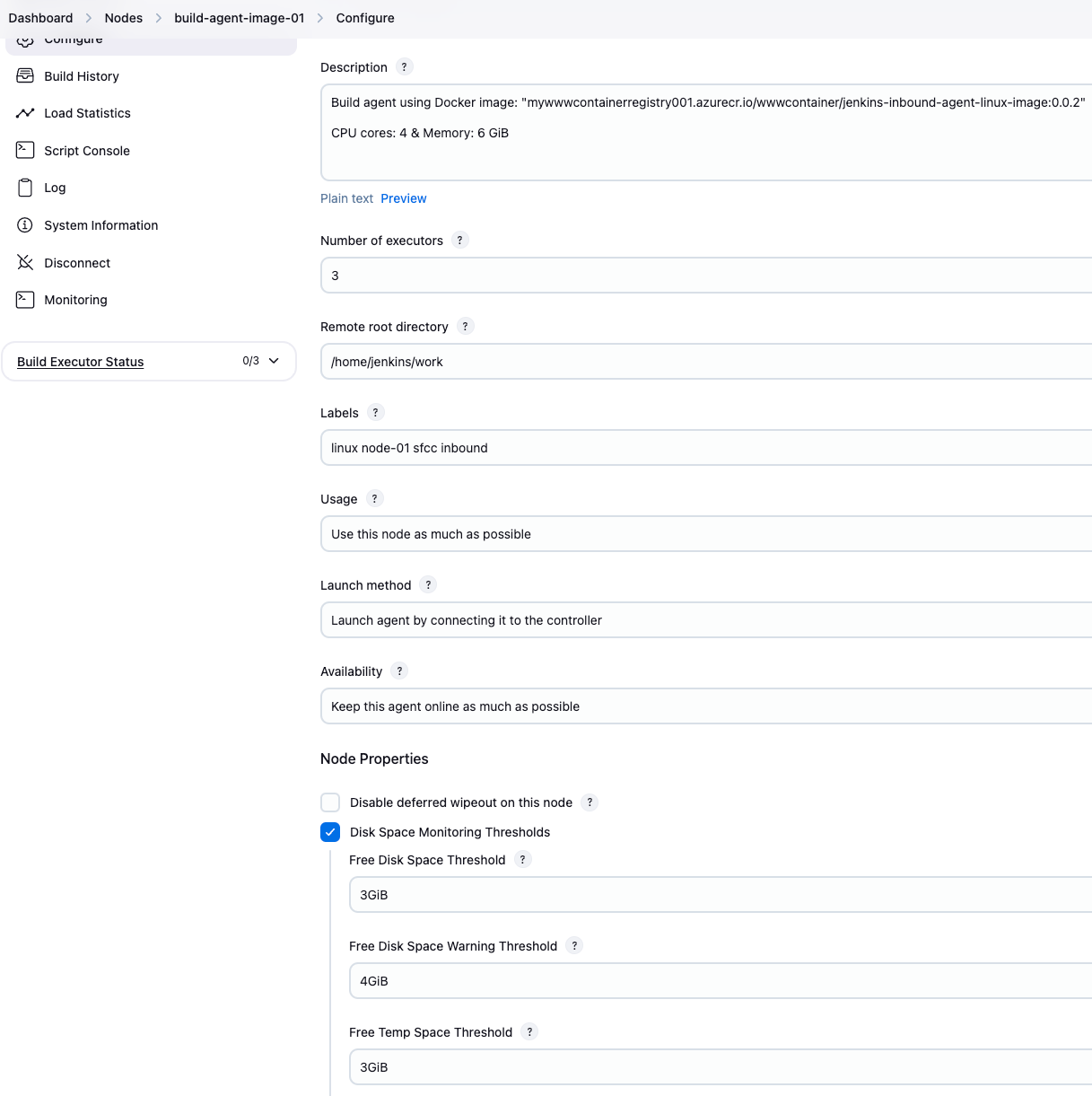

Inside Jenkins main node we need to provision a new Node as a Permanent Agent:

Once completed the creation process on Jenkins main node, this is what the Status section will look like:
You are going to need the SECRET, NAME & WORK_DIR

Unlike with main node, we decided to go for our own customized jenkins inbound-agent since we require certain additional tools as documented in previous posts.

Now going back to Azure Cloud Shell, you will need to execute the following create command:

az container create --resource-group $ACI_PERS_RESOURCE_GROUP --name my-agent-node-01 --image mywwwcontainerregistry001.azurecr.io/wwwcontainer/jenkins-inbound-agent-linux-image:0.0.2 --os-type linux --dns-name-label jenkins-node-01-ci --ports 443 --command-line "java -jar /usr/share/jenkins/agent.jar -url http://jenkins-main-ci.eastus.azurecontainer.io:8080 -secret <SECRET_GOES_HERE> -name build-agent-image-01  -workDir /home/jenkins/work -webSocket" --cpu 4 --memory 6

Some considerations

--command-line "java -jar /usr/share/jenkins/agent.jar -url http://jenkins-master-ci.eastus.azurecontainer.io:8080/ -secret <SECRET_GOES_HERE> -name build-agent-image-01 -workDir /home/jenkins/work -webSocket"

This parameter (--command-line) tells the container to execute this command(s) when starts, so it will try to connect to its main node as soon as it comes online.

The key here is to include the modifier -webSocket, otherwise it will not be able to communicate with the main node.

If everything went as planned, the agent will show online in a couple of minutes.


Why didn't you stick with the OOTB Jenkins Inbound agent for linux like you did for the main node with jenkins/jenkins:latest?


If you have been paying attention and had read my previous posts, we need some special software to be installed on the agent to make it possible to compile and deploy SFCC code base:
  • rsync
  • 7zip
  • maven (optional)
  • git
  • curl
  • sudo
  • NodeJS 10.24.1
  • NPM
  • typescript
  • sfcc-ci

Therefore we need a custom image, but since I am not a big fan of reinventing the wheel, I extended the OOTB agent and this is the result.




If you are the type of fellow who would like build the docker image from scratch, here it is the Dockerfile for your own amusement:
FROM jenkins/ssh-agent:latest

#Switch to root
USER root

# Install rsync, 7zip, maven, git, curl & sudo
RUN apt-get update \
 && DEBIAN_FRONTEND=noninteractive \
    apt-get upgrade -y \
 && apt-get install -y rsync p7zip-full maven git curl sudo

# Clean up APT when done.
RUN apt-get clean && rm -rf /var/lib/apt/lists/* /tmp/* /var/tmp/*

#Setup NodeJS & NPM
ARG NODE_VERSION=10.24.1
ARG NODE_PACKAGE=node-v$NODE_VERSION-linux-x64
ARG NODE_HOME=/opt/$NODE_PACKAGE

ENV NODE_PATH $NODE_HOME/lib/node_modules
ENV PATH $NODE_HOME/bin:$PATH

RUN curl https://nodejs.org/dist/v$NODE_VERSION/$NODE_PACKAGE.tar.gz | tar -xzC /opt/

#Install Typescript - test
RUN npm install -g typescript

#Install SFCC-CI
RUN npm install -g sfcc-ci

#Create "alias" (soft link) for 7z
RUN ln -s $(which 7z) /usr/bin/7zz

#Switch to jenkins
USER jenkins

It's not a big deal




Now it's up to you to try and see the magic with your own eyes!
